Image Generation

Orb can generate an image of the current scene. You request each image on demand.

Orb renders through one of two backends, which you pick in settings:

Backend	What it needs	What it costs
External ComfyUI	A ComfyUI server you run, a checkpoint, and an imported API-format workflow	Your own hardware and electricity
Cloud API	An API key	Money, per image, billed by the provider

Orb does not install ComfyUI or image models. For a quick, out-of-the-box setup, see ComfyUI Setup. For a cloud provider, see Cloud Image Setup. For ComfyUI hardware requirements and advanced options, refer to the official ComfyUI documentation.

You pick the style for each gen, each style is linked to a backend/connection that you must provide.

Before you start

Make sure that you have these items:

• A working LLM endpoint in Orb
• Either a running ComfyUI server with at least one checkpoint and network access to it, or an API key for a supported cloud provider

Orb's Agent-lane LLM reads the conversation through the reply you selected and writes the scene portion of the image prompt. It also sees the saved style and character prompt blocks so it can avoid duplicating or contradicting them. It does not see the generated image.

For Tags and Hybrid, Orb starts the final positive prompt with booru character-count tags, then combines the saved style prompt, visible character profile, and composed scene. For Prose, Orb omits booru count tags entirely and describes the visible cast naturally. It assembles the negative prompt from the character exclusions, scene-specific exclusions, and style exclusions. The image model receives only those final prompt strings; it does not receive the conversation, character card, or scene analysis.

Enable image generation

1. Open Workflow.
2. Select the Secondary tab.
3. Turn on Image Generation.

The Image Generation card shows the current configuration status.

Choose an image backend

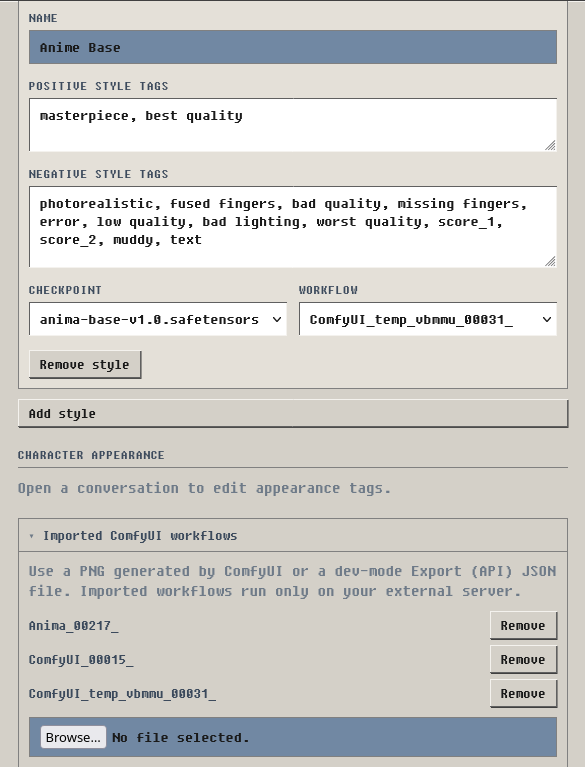

First, this is what the UI look like (at least part of it):

1. Open Workflow and select the Secondary tab.
2. In the Image Generation card, select Settings (or Finish Setup if first time).
3. Open Connections. ComfyUI is always listed and cannot be removed; use Add connection for a cloud provider.
4. Fill in that connection, as below.
5. Select Test connection.
6. Under Styles, set each style's Connection to where it should render.
7. Select Save.

There is no global backend switch: each style names the connection it renders on, so a local anime checkpoint and a commercial photorealistic API can sit side by side in one conversation, one dropdown apart. Relinking a style swaps only the fields that depend on the backend; every other field, and both backends' pins, stay where they are.

External ComfyUI

1. Start ComfyUI.
2. Enter the ComfyUI URL.
3. Enter an API key if your server uses a Bearer token.
4. Select Test connection.
5. Make sure that the result is Connected.

Use http://127.0.0.1:8188 when Orb and ComfyUI use the same computer and the ComfyUI port is 8188.

A connection is not enough to render. Orb has no built-in workflow: each style renders through a ComfyUI workflow that you import and assign. Until you do, the status stays Import a ComfyUI workflow.

Note

Test connection checks every style that has a workflow assigned. Each of those workflows must be valid, and a checkpoint is required when the workflow lets Orb override the model.

Cloud API

1. Select a Provider.
2. Paste your API key for that provider.
3. Select Test connection. This lists the provider's models. It never generates an image, so it never costs anything.
4. In a style, select this connection, then pick a Model and a Resolution. Orb picks the closest aspect ratio or size the provider accepts and tells you on the image when the match is not exact.

The key is all a connection holds. The model, resolution, quality and reference images are chosen per style, so two styles can share one key and one bill while rendering with different models.

Full walkthrough, provider list, and what each provider supports: Cloud Image Setup.

Warning

A cloud provider is a third-party commercial API. Your scene prompts leave this machine, each image is billed to your account there, and the provider may retain what you send under its own retention policy. Orb asks you to confirm this the first time you save each provider, and asks again the first time you turn on reference images for it.

Orb keeps one API key per provider, so switching provider — and switching back — does not lose a key you already pasted.

What a cloud provider does not do

Cloud image APIs expose far fewer controls than a ComfyUI workflow. The settings panel states the gaps for the selected provider under the picker. For xAI, and for most OpenAI-shaped providers:

Not supported	What Orb does
Negative prompt	The prompter is told not to write one, so no model effort is spent on it. Orb still records the negative prompt on the image, so replaying that image on ComfyUI later is correct.
Seed	Orb still mints and stores a seed, because an image with no seed can never be rehydrated. Render details shows Seed: not used rather than a number the render never saw.
Steps, CFG, sampler, scheduler	Cloud providers expose none of them, so nothing is sent and nothing is recorded.
Exact width and height	Orb sends the nearest aspect ratio or size the provider accepts, and adds a note to the image when the difference is more than about 2%.

Style prompts, the character appearance prompt, the camera, and the resolution all still apply.

Cost

Render details shows what the provider's response reported about cost, in the provider's own unit. xAI reports usd_ticks and does not document what a tick is worth, so Orb prints 1400 usd ticks rather than converting it to a dollar figure it cannot verify. When a response reports no cost at all, Orb shows no cost row — it does not print a zero.

Every Reroll, Regenerate and Rehydrate on a cloud backend is a new billed image.

When a render fails

Orb relays what the provider answered, with the HTTP status in front of it — "NanoGPT rejected the request (HTTP 402): Insufficient credits" — rather than sorting failures into categories of its own. Credentials and internal paths are stripped before the message is shown.

Commercial image APIs also moderate prompts, and a refusal arrives the same way, quoting the provider's policy message. Rewording the scene, or a different provider, is the only way through; there is no Orb-side setting that changes it.

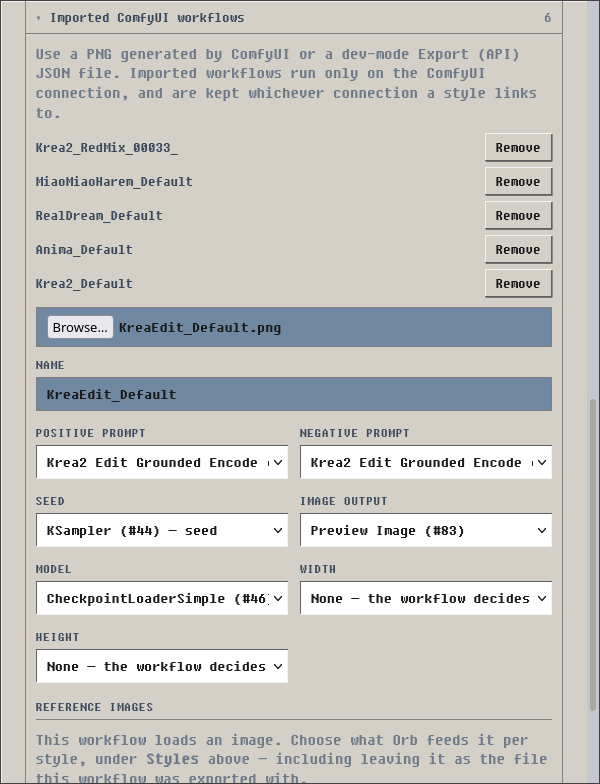

Import a ComfyUI workflow

Orb renders through ComfyUI workflows that you import. The ComfyUI server must have all nodes and models that the workflow uses.

Orb accepts these files:

• An API-format JSON workflow
• A ComfyUI output PNG that contains workflow metadata

If you previously followed the tutorial in ComfyUI Setup, import the .png file here.

A normal ComfyUI workflow JSON file is not an API-format file. In ComfyUI, turn on the developer options. Then use Save (API Format) or Export (API). The exact label depends on your ComfyUI version. ComfyUI documents the developer switch under Comfy settings.

To import the workflow, do these steps:

1. Open Image Generation settings.
2. Open Imported ComfyUI workflows.
3. Select the API-format JSON file or the ComfyUI PNG file.
4. Enter a name for the workflow.
5. Check the selected prompt, seed, image output, and model slots.
6. Optionally set Width and Height. See Let Orb set the resolution below. Both default to None — the workflow decides.
7. If the workflow loads images, check the list under Reference images. It names each Load Image widget the importer found. You choose what Orb feeds them per style, in step 10.
8. Select Confirm slots and add workflow.
9. In a style, select the imported workflow.
10. If the workflow loads images, set each row under Reference images on that style. See Reference images below. Leave a row Off to keep the file the workflow was exported with.
11. If your workflow is complex, review the nodes - make sure Orb points to the right node numbers.
12. Select a checkpoint if Orb must replace the model in the workflow.
13. Select Test connection to validate everything works.
14. Select Save.

Let Orb set the resolution

A ComfyUI workflow normally decides its own output size, and Orb leaves it that way unless you say otherwise. Mapping Width and Height at import hands that control to the style's Resolution picker instead.

Map them when the workflow has a plain latent node whose size you would otherwise edit in ComfyUI — typically an Empty Latent Image in a text-to-image graph.

Leave them as None when:

• The workflow takes its size from a reference image, an aspect-ratio node, or a resolution helper. There is nothing to set, and setting an early latent would not change what comes out.
• Your checkpoint has a native resolution. Many SD 1.5 and SDXL checkpoints degrade badly away from theirs, and the workflow's author already picked a size that works.

Orb offers only inputs literally named width and height, so a numeric input like grounding_px is never proposed. Both must be mapped together — half a size is not a size.

The Resolution field appears on a style only while its assigned workflow maps both. If you set a non-default resolution on a style whose workflow maps neither, the image says so under Render details rather than quietly ignoring it.

If a PNG does not contain workflow metadata, export an API-format JSON file from ComfyUI instead.

Reference images

On a cloud provider

Set Reference images on the style. It is off by default: sending images from your conversations to a third party is opt-in. Because it is a style setting, one style on a provider can send references while another on the same key does not.

When it is on, Orb routes the render to the provider's image-edit endpoint and sends the resolved image inline with the request. Orb converts it to a format the provider accepts first — generated images are stored as WebP, and most providers take only PNG and JPEG. The size limit for a cloud reference is 4 MB, smaller than ComfyUI's, because the image is base64-encoded inside a JSON request body. Orb resizes and re-compresses to stay under that limit; if it cannot, the render fails and says so rather than sending an oversized request.

The source choices are the same three listed below. Providers that accept only one reference image are sent the first, and Orb notes it on the image.

A cloud reference is optional. When no source resolves — a new conversation with no images yet, and no character reference — the render goes to the plain generation endpoint instead, and the image says so under Render details. This is the one difference from ComfyUI, where a workflow built around a Load Image node cannot render at all without one.

On ComfyUI

Edit workflows - Qwen-Image-Edit, Flux Kontext, Krea Identity Edit, IPAdapter - take one or more input images through Load Image nodes. Orb fills those nodes for you: each render uploads the image to ComfyUI and points the node at the uploaded file. Orb fills only the Load Image nodes the workflow already contains and never adds nodes, so a workflow that takes two reference images must be exported with two Load Image nodes.

Set Reference images on the style, the same place a cloud style sets it. The style shows one row per Load Image widget its assigned workflow declares, and each row is off by default. Because it is a style setting, two styles can share one workflow and feed it differently - one drawing on the chat, another rendering from the prompt alone - and you can change your mind without re-importing the workflow.

A row left Off keeps the filename the workflow was exported with. That file has to exist on your ComfyUI server, and Test connection says so if it does not.

Each reference row offers these sources:

Source	What Orb sends
Previous image, else character reference	The most recent image in the chat. If the chat has none, the character reference image.
Previous image in the chat	The most recent image in the chat.
Character reference image	The character reference image.

The previous image is the most recent generated image or uploaded image before the reply you are visualizing. If a reply has image variants, Orb sends the variant that is currently shown. Orb never sends the image already attached to the reply you are visualizing. When no source resolves on ComfyUI, the render fails and names the slot - Orb does not substitute a different image.

Orb looks back at most 30 messages on the branch. Past that, Previous image, else character reference falls through to the character reference: a picture from far earlier in the conversation is usually a different scene, and often a different character, so the likeness you set on purpose is the better answer.

Uploads count only in the formats Orb accepts - PNG, JPEG and WebP. An upload in any other format (a phone HEIC, for example) is skipped and the search continues to the next image.

Note

These workflows take the output size from the reference image or from a resolution node, so the output aspect ratio follows the reference image rather than the resolution you set.

Set the character reference image

1. Open a conversation with the character, then open Image Generation settings and find This Character Only.
2. Under Reference image, select a PNG, JPEG or WebP file. The limit is 10 MB.
3. Select Save.

When you set no reference image, Orb sends the character card's avatar.

A file in another format, or over the limit, is not saved. Orb tells you so rather than accepting the save and dropping the image.

Reference images and reroll

Reroll changes the seed only. Orb records where each reference came from and fetches the same image again, so the picture keeps its subject. A character reference is re-read from the character profile, so changing it and rerolling applies the new image.

Rerolling under a different style carries the references over. Orb records an origin - a chat image or a character card - not a slot in one workflow, so it re-points them at whatever the new style loads them into, including across backends. Two cases still fail, and both say why: the source image was deleted or its bytes were evicted, or the new style needs a reference the stored image never recorded. Use Regenerate for those.

Two cases re-render with a note instead of failing:

• The new style takes no reference images at all. The reference is not sent, and the picture will not match.
• The new style takes fewer than the original recorded. The extras are not sent.

If the image an origin points at has since been replaced - by rehydrating an evicted image on a backend that does not honour seeds, for example - the reroll fails rather than quietly using a different picture.

Warning

A ComfyUI server that is not on this machine receives your conversation images and your character reference image, not only your prompts. Orb asks you to confirm this the first time you save a remote server with a workflow that uses reference images. Uploaded files stay in that server's input/orb/ directory - ComfyUI has no delete API for them.

Make an image

1. Open Workflow and select the Secondary tab.
2. In the Image Generation card, select a style.
3. Find the assistant reply that you want to show as an image.
4. Select the image button. Its tooltip is Visualize reply.
5. Wait for Orb and ComfyUI to complete the image.

Orb shows the current phase. The phase can be prompt composition, queue wait, or rendering. If another render is before your render, Orb shows the number of renders in front of it.

Select the image button again to cancel an active render.

Use image variants

The image has two action buttons:

Action	Result
Reroll	Orb uses the stored prompt and settings. It uses a new seed. See Edit the prompt manually.
Regenerate	Orb writes a new prompt. It uses the current style and character settings.

Orb keeps each result as a variant. Use the left and right arrows to view the variants. The counter shows the active variant.

Reroll and rehydrate on a cloud backend

Reroll works as it always did. Its promise is "same prompt, different image", and a provider with no seed is nondeterministic anyway — so a fresh call is a reroll.

Rehydrate cannot keep its promise. It exists to restore the exact bytes of an image whose data was evicted from the cache, and it does that by re-rendering from the stored seed. A provider that ignores seeds returns a different image. Orb re-renders and says so on the attachment, rather than refusing:

this provider takes no seed: a fresh render of the same prompt, billed as one, not the original image

Rehydrate on a cloud backend costs money, for the same reason a generate does.

Switching backend with old images

Rerolling an image that was generated on the other backend re-renders it on the one selected now, and notes the substitution on the result. Orb does not refuse: a refusal would surface only as a generic server error, and the image you get is still the prompt you asked for.

An image replays at the resolution it was generated at, not the resolution currently in the picker, on either backend. Changing the picker does not retroactively resize old images.

Open Render details to see the style, seed, prompt, and negative prompt. Select the style name in these details to edit that style.

Use the delete button in the image header to remove a variant or its variant group. Read the confirmation message before you continue.

Edit the prompt manually

The prompt that the prompter model wrote is not final. You can correct it and render the correction.

1. Open Render details under the image.
2. Select the pencil next to Prompt or Negative.
3. Edit the text.
4. Select outside the field. Orb shows Prompt edited — reroll to render.
5. Select Reroll.

Orb renders your text as written. The prompter model does not run again.

Reroll also takes the style that is selected in the Image Generation card at that moment, not the style that made the original image. The style supplies the checkpoint and the ComfyUI workflow. Set the style you want before you reroll.

Style tags are already baked into the stored prompt text, so a new style does not reword it. When the style changes, Orb adds a note to Render details to say that the prompt text still carries the previous style's wording. Edit the tags in the prompt field yourself if you want them to match.

The edit stays with the attachment until you replace it, so a failed reroll does not lose your text. Regenerate ignores the edit: it writes a new prompt.

Set the character tags (Optional)

Allow user-defined appearance tags to always come with the character. A common use case is name of a non-OC character, some image models do better with canon character names.

1. Open a conversation with the character.
2. Open Image Generation settings.
3. Find This Character Only.
4. Enter comma-separated appearance tags in Positive prompt.
5. Enter unwanted character features in Negative prompt.
6. Select Save.

Use fixed and visible details. For example, specify hair, eyes, body shape, and usual clothes. Do not add a character-count tag such as 1girl. Orb gets the character count from the scene.

Negative tags apply only to this character profile. Style and scene negative tags are separate.

This section also holds the character's reference image. See Set the character reference image.

Change a style

Orb ships Realistic and Anime styles out of the box. A style contains these items:

Item	Function
Name	Sets the name in the style list.
Prompt format	Chooses tags, hybrid tags and clauses, or prose for the scene portion. Tags and Hybrid use 1girl/1boy count tags; Prose never does. Match this to the text encoder in the imported workflow. The style list and the tools-panel picker show the format after the name, for example Krea-Alt (Prose).
Positive style tags	Adds visual properties near the start of the image prompt.
Negative style tags	Appends properties that ComfyUI must avoid.
Extra instructions	Gives composition or emphasis guidance to the prompter model. This is not copied into the image prompt.
Connection	Selects where this style renders: the ComfyUI server, or one of your cloud connections.
Checkpoint	Selects the model file on the ComfyUI server. ComfyUI only.
Workflow	Selects the ComfyUI workflow for this style. ComfyUI only.
Model	Selects the model this style renders with. Cloud only. Leave it on the provider's default if you have no preference.
Resolution	Sets the output size. Always shown for a cloud connection; on ComfyUI, only when the assigned workflow has Width and Height slots mapped.
Quality	Sets the provider's quality tier, on providers that expose one. Cloud only.
Reference images	Chooses what Orb feeds each image input this style's render target has - one on a cloud provider, one per Load Image widget on a ComfyUI workflow. Off by default. See Reference images.

A style owns everything that decides what the image looks like. A connection owns only how Orb reaches a backend — a URL and a key.

That means two styles on one cloud provider can use two different models: point Realistic at a photographic model and Anime at an illustration one, both on the same API key. Same for resolution, quality and reference images.

Every one of these fields is kept on the style whichever connection it links to, so switching a style to a cloud provider and back leaves its workflow pin, checkpoint and model exactly where they were.

The Realistic and Anime rows are seeded with starting tags that you can edit or clear like those of any other style. Empty tag fields add no style tags.

To add a style, do these steps:

1. Open Image Generation settings.
2. Select Add style.
3. Enter a name and the style tags.
4. Select a connection.
5. For ComfyUI, select a checkpoint and a workflow. For a cloud provider, select a model and a resolution.
6. Select Test connection.
7. Select Save.

A new style starts from the previous one's settings, so a variation on an existing style is usually two fields away.

You must keep at least one style.

Set the camera (POV)

The camera decides whether the image looks through the user's eyes or at the scene from outside. Orb decides it before it writes the prompt, then gives the prompter one set of instructions written for that camera only.

Set it in the Image Generation card, next to the style picker. The choice is global, like the style: it applies to every conversation until you change it. Leave it on Auto if your chats are written in different persons.

Mode	Result
Auto	The local POV classifier reads the reply. First- and second-person narration give the first-person camera; third-person narration gives the third-person camera.
First-person	Always through the user's eyes. The user is not drawn.
Third-person	Always from outside. Every person in frame is drawn, including the character the user plays.

Orb decides the camera in this order. The first match wins:

1. The First-person or Third-person mode on the picker.
2. The classifier, in Auto mode. If a reply is too short or too mixed to read, Orb reads the previous assistant replies until one is clear.
3. Third-person.

A camera tag such as first_person in the character's Positive prompt no longer sets the camera — use the picker.

Each image records which camera it used and which lever chose it. Open Render details under the image and read the Camera row: picker, classifier or default. It names where to go to change a camera you did not want.

Turn on the POV classifier

Auto needs a small local model. Without it, Auto falls back to third-person and the picker says Auto (classifier off).

1. Install the machine-learning extras. See Character Expressions.
2. Open Settings and find Local ML.
3. Select Download on Image POV. The model is about 20 MB.
4. Leave the toggle on.

The model runs on the CPU inside Orb. It sends nothing to a server.

Analyze a complex scene

Turn on Analyze complex scenes when a scene has multiple characters or important positions. Orb first identifies the visible characters, clothes, and positions at the final visible instant. Orb then converts that structured scene to the selected prompt format. The second pass treats the extracted scene as data, so dialogue or instructions inside the roleplay do not become prompt instructions.

This option makes one additional LLM call for each new image or regenerated image. A reroll uses the stored prompt and does not make this additional call.

Enable prompter thinking

Turn on Enable prompter thinking when the Agent model benefits from reasoning before it analyzes the scene or writes the diffusion prompt. The setting applies to both prompt calls: the optional complex-scene analysis and the always-on prompt composition call.

The prompter always uses Orb's Agent model lane. In single-model mode this is the same endpoint and model as the Writer. In dual-model mode it uses the configured Director/Editor endpoint, model, system prompt, and reasoning-effort setting.

Changing thinking mode can reduce prompt-cache reuse on providers that keep thinking and non-thinking requests in separate cache lanes. Keeping the setting stable gives the two prompter calls the best chance to reuse one another. Matching the Editor setting may also improve reuse when an Editor-side call ran recently, but provider behavior and the prompter's separate tool schemas mean this is not guaranteed.

Solve common problems

Problem	Action
The image button is not shown.	Turn on the workflow. Use an assistant reply without an image. Make sure that this tab has write control.
The status says Import a ComfyUI workflow.	Import a workflow under Imported ComfyUI workflows. Assign it to each style.
The status says Choose a checkpoint.	Open each style whose workflow overrides the model. Select a checkpoint.
The connection test fails.	Make sure that ComfyUI is running. Check the URL, port, firewall, and API key.
Orb cannot find a checkpoint.	Add the checkpoint to ComfyUI. Restart or refresh ComfyUI. Test the connection again.
ComfyUI rejects the workflow.	Check that the server has all required nodes. Check the selected checkpoint and imported slots.
The render times out.	Check the ComfyUI queue. Increase Render timeout. The allowed range is 10 to 900 seconds.
A render says it needs a reference image.	Generate or upload an image in the chat first. Or set a character reference image, and set the slot to a source that includes it.
A reroll says the reference image is gone.	The source image was deleted or its bytes were evicted. Select Regenerate.
A reroll says the reference image was replaced.	The image that origin points at now holds different bytes, so the reroll cannot reproduce the picture. Select Regenerate.
A reroll says the style needs a reference the image did not record.	That style loads more images than the stored one recorded. Select Regenerate under that style.
A render says the reference image could not be read.	Orb accepts PNG, JPEG and WebP. Replace the upload or the character reference image.
A render says the reference image is too large after resizing.	Use a smaller source image. Cloud providers cap a reference at 4 MB once encoded.
A reference image was not saved on the character.	Orb accepts PNG, JPEG and WebP up to 10 MB.
The connection test says a node needs an image on the server.	The message names the style. Either point that slot at a source under that style's Reference images, so Orb overwrites the filename, or put the file in ComfyUI's input directory so the style that leaves the slot Off can render it.
ComfyUI completes without an image.	Select a valid image-output node in the imported workflow.
Orb cannot write an image prompt.	Check the Orb LLM endpoint. Use a model that can make tool calls.
An old image shows Bytes evicted.	Select Rehydrate. Orb uses the stored prompt, settings, and seed to make the image again. On a cloud backend this is a fresh billed render, disclosed on the image.
The status says Paste an API key.	Open settings, open Connections, and paste the key for that provider.
The status says Choose a … model.	Open the style and select a Model, or pick a provider that ships a default.
The Resolution field is missing on a ComfyUI style.	Its workflow maps no size slots. Re-import the workflow and set Width and Height, or leave the workflow to decide.
An image says the workflow decides its own output size.	You set a non-default resolution on a style whose workflow maps no size slots. Either re-import it with Width and Height mapped, or set the style back to 1024x1024.
The status says Unknown image provider.	The stored provider id is not in Orb's table. Pick a provider from the list. Your key is kept, not deleted.
The provider says the API key was rejected.	Check the key, and check that it is enabled for image generation on the provider's dashboard. A 403 can also mean your plan does not cover the model; the provider's own message says which.
A render failed with HTTP 4xx and the provider's message.	The provider understood the request and refused it. The message is theirs — a content policy, an unsupported parameter, an exhausted balance. Act on what it says.
A render failed with HTTP 429.	Rate limit or exhausted quota, depending on the provider. The message says which; wait, or check your plan's limits.
A render failed with HTTP 5xx.	The provider's own failure, not your configuration. Try again; if it persists, check the provider's status page.
The provider did not respond within the timeout.	The render exceeded Orb's timeout. Large resolutions and busy models are the usual cause; try again or pick a faster model.
A cloud image came back the wrong shape.	The provider renders fixed aspect ratios. Render details names the ratio it used. Pick a resolution closer to one the provider supports.
Seed says not used.	Expected. The provider ignores seeds; the stored seed exists so the image can still be rehydrated.

The ComfyUI queue can continue a submitted job after the browser disconnects. If you cancel a render, check the ComfyUI queue before you start another render.
